Description
Key Specifications & Applications
Component Type: Torsion Spring
Manufacturer: Yamaha (Genuine OEM)
Primary Compatibility: 1980 Yamaha G1A (Gas) and G1E (Electric) Golf Carts
Assembly Location: Rear carrier frame / brake lever linkage assembly
Technical Diagram Breakdown
In standard Yamaha G1 parts schematics, this spring works in tandem with the following neighbouring hardware:
Lever Pin: J10-78368-00-00
Torsion Spring: 90508-10382-00
Circlip: 99080-05600-00 or 93410-06053-00
Pan Head Screw: 98580-06008-00
No items found.
Specifications
DOWNLOADS

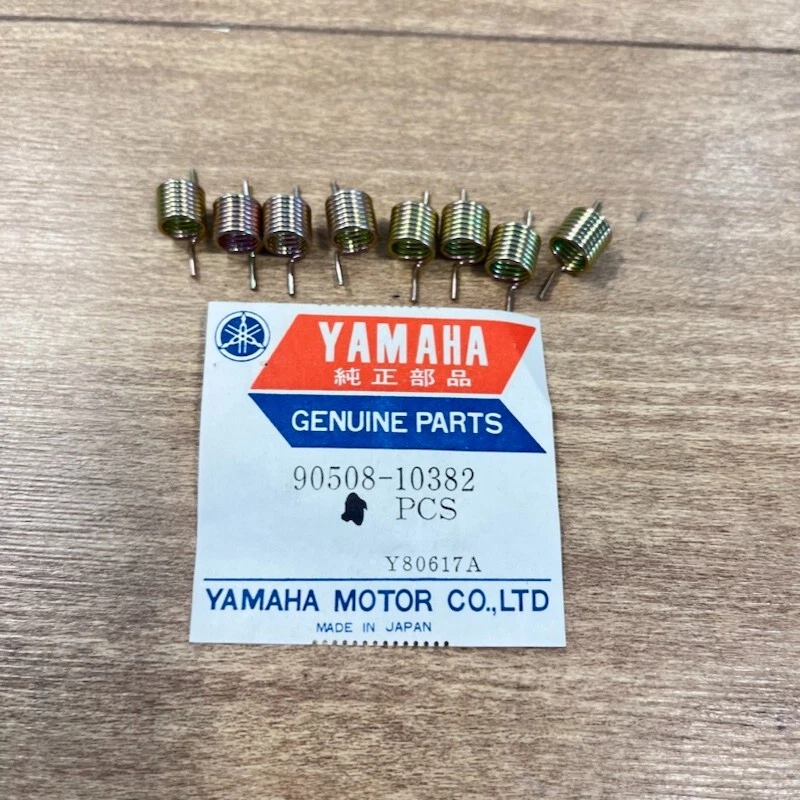

Yamaha Spring Torsion - 90508-10382-00 (ONLY 2 AVAILABLE)
Yamaha
GCSHP
$ 8.95
