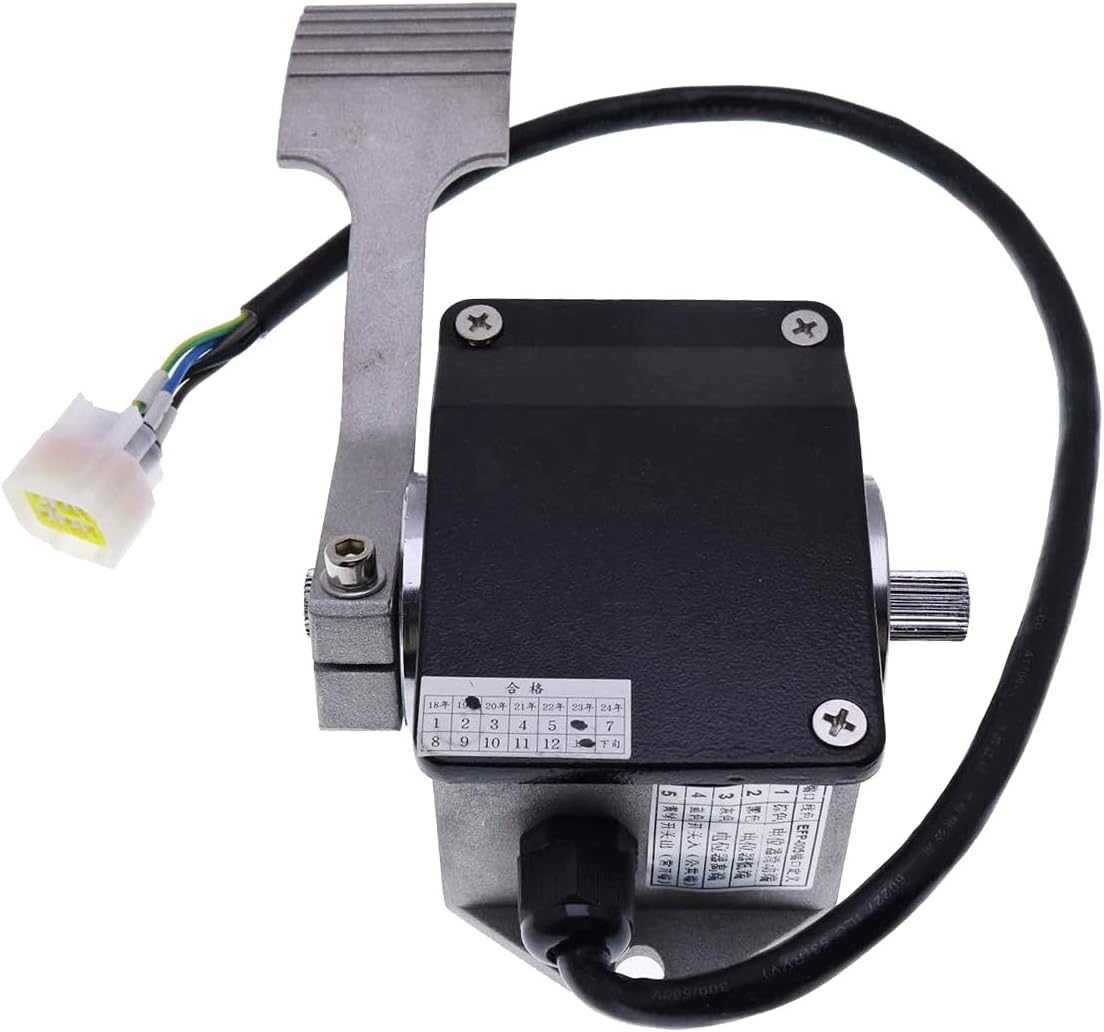

The foot pedal throttle EFP-005 is a 0-5KΩ potentiometer throttle (3-wire pot throttle), is widely used in forklifts, golf cart and other electric mobility vehicles.

Specifications:

• The foot pedal could be installed at both ends of rotating shaft
• Signal output: 0-5KΩ  ± 0.1KΩ (BI potentiometer P270-033B)
• Solid metal case, ingress protection: IP55
• Installation kit is included: bolts, nuts and washes
• Mating connector is included
• Net weight: 1.20 kg (with installation kit and mating connector)

Key Features:

• Model: EFP-005, working with CURTIS 120M-4201 Series Motor Controller, CURTIS 268-5403 SepEx Motor Controller and other CURTIS controllers
• Switch on/off signal: 0V - power supply voltage
• Operation temperature range: -55℃ –120℃
• Storage temperature range: -40°C - 80°C
• Ingress protection: IP55
• Mechnical lifespan: 1,000,000 times
• Installation kit is included: bolts, nuts and washes
• Mating connector is included
• Mechnical lifespan: 1,000,000 times

‍
