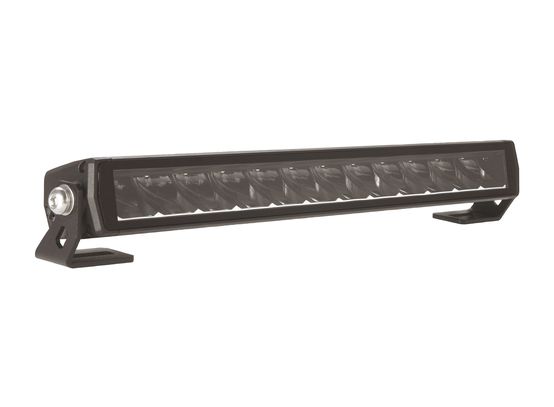

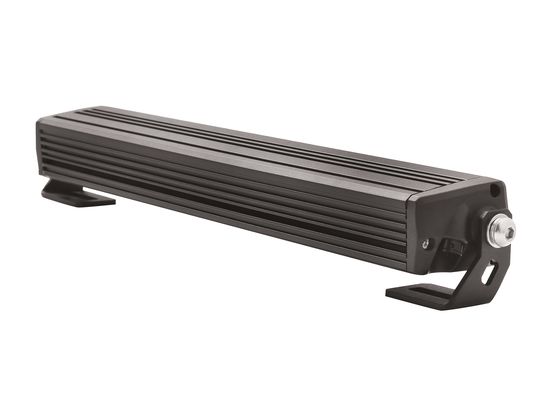

14’’ Single Row 12 LED Light Bar
.jpg)
Description
Ultra Slim – 40.5mm height for Single Row Lightbars & 52.5mm depth for both Single Row & Dual Row Lightbars
Flush Front Fascia with no Exposed Screws – Easy to clean & no chance of screws corroding
Black anodised polyester powder coated extruded 6063 Aluminium housing with integrated heat-sink & pressure equalising vent
Polycarbonate reflector focusing optic drive technology with Lexan polycarbonate lens
Cross slider bracket assembly allows the bottom brackets to be positioned anywhere along bar’s length
No items found.
Specifications
- Driving beam
- 120W, 12 x 10W high intensity LP LED’s
- 8,800 Raw & 7,500 Effective Lumens
- 1 Lux @ 360m & 129,300cd peak beam intensity
- 9 – 36V Multi voltage
- Current Draw: 5.3A @ 12V & 2.5A @ 24V
- 358mm length
- Weight: 1.13kg
Provided with:
- Bottom Mount Bracket – 6063 Aluminium
- Side Mount Bracket – SUS201 Stainless Steel
- 500mm lead with 2 Pin deutsch plug
DOWNLOADS
14’’ Single Row 12 LED Light Bar
Generic
$ 169
